Wheel design Rodder


The asphalt is hot after a classic burn-out at the Drive-ins in California!
The classic “Hot Rod” look like we know it from the speed world record runs on the Bonneville Salt Flats or Lake Muroc in California! For Bobber, Chopper, Oldstyle or brand new hi-tech bikes and Lowrider – this rim matches almost any style! Five solid but at the same time elegant bars with round cut-outs give stability and an unrivalled sporty custom look. Together with matching design pulleys and brake discs, this is an ultra-clean wheel with which a custom bike will look good anywhere…at the custom bike event, in front of the ice-cream parlour or at the next speed trials at Lake Bonneville in Utah!

The modular build of our 3-piece assembled wheels makes it possible to vary the look due to different surfaces. Powder-coating is possible in all RAL colours and due to different surfaces of the rim bed and the rim star, a trendy bicolor effect can be created. In addition, the blank screws ensure an interesting technical look and are truly the icing on the cake.

0%
    Ricks Street Bob 260 002 Ricks Street Bob 260 019 Ricks Street Bob 260 013 Ricks Street Bob 260 001 Ricks Street Bob 260 017 Ricks Street Bob 260 009

    Three-piece CNC-machined wheels in custom design

    Form and function are united in Rick’s wheels: by far exceeding their function as pure “wheel holders”, Rick’s design wheels determine the look of the motorcycle and also improve ride performance.

    For building custom bikes, making wheels in several parts is revolutionary: a filigree look, robust in use, they offer an affordable option for several tire widths. The well known aluminium forged wheels from Rick’s are state-of-the-art, made in motorcycle norms and of course come with certificate.

    The basis for all components is forged aluminium plate material, which is machined on CNC-machines into the correct custom design. The rounds for the rings are cold-formed under high pressure, which is called forging. The material density which is thus created has several advantages: no interruption of material grain direction, no pores or vacuum pockets as with other procedures, e.g. casting, are created, and a very good surface quality when polishing. Because of the high tensile strength of the material, with Rick’s wheels from 15” to 21” also unusual and filigree designs up to a width of 12.5” are possible. All rims can be supplied raw, polished or powder-coated.

    Numerous combinations are possible: a coloured, powder-coated inner piece with polished rings, painted rims with polished inner part – there are no limits to your imagination…

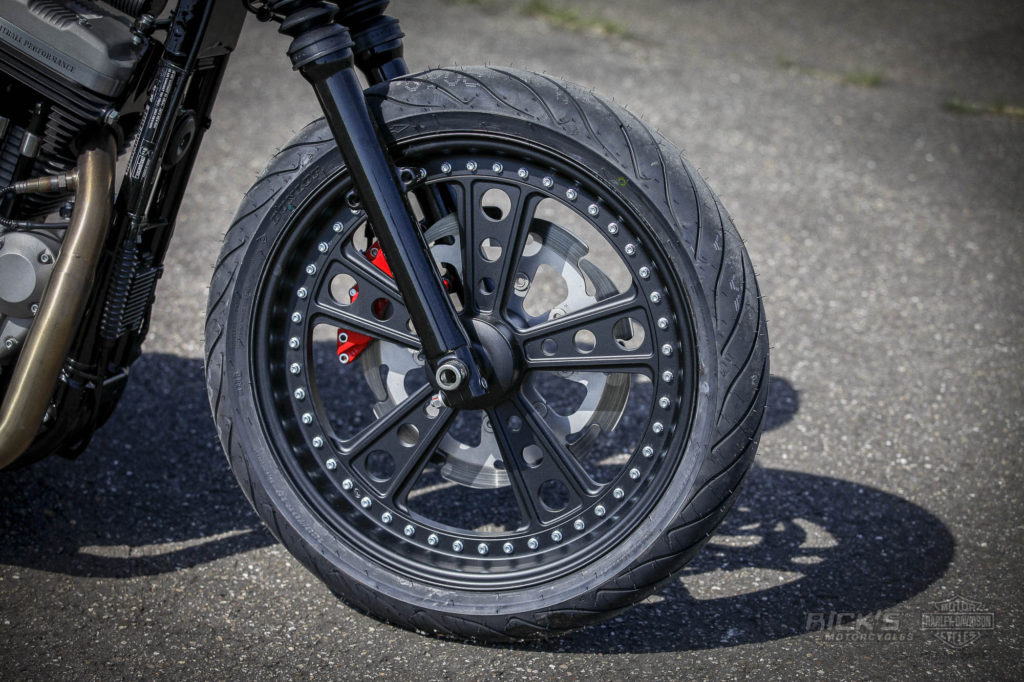

    Sportster 8 Ball Klees 009 Sportster 8 Ball Klees 019 Sportster 8 Ball Klees 005 Sportster 8 Ball Klees 012 Sportster 8 Ball Klees 021 Sportster 8 Ball Klees 018 Rick's Platinum Sportster Rick's Platinum Sportster Rick's Platinum Sportster Rick's Platinum Sportster
    Durchmesser Breite
    16 Zoll
    3,5 / 4,0 / 4,5 / 5,5
    6,0 / 6,5 / 7,0 / 7,5 / 8,5 / 9,0
    17 Zoll
    3,5 / 4,0 / 4,5 / 5,5
    6,0 / 6,5 / 7,5 / 9,0
    10,5 / 11,5
    12,5

    18 Zoll
    3,5 / 4,5 / 5,0 / 5,5
    6,0 / 6,5 / 7,5 / 8,0 / 9,0
    10,0 / 10,5 / 11,5
    12,5
    13,5 / 14,5
    19 Zoll
    2,5 / 3,0
    21 Zoll
    2,5 / 3,5
    V-Rod
    19 Zoll
    3,0 x 19 V-Rod für Design Bremsscheiben

    3,0 x 19 V-Rod für originale Bremsscheiben
    18 Zoll
    3,5 x 18 V-Rod für Design Bremsscheiben

    3,5 x 18 V-Rod für originale Bremsscheiben
    6,0 x 18 V-Rod für Design Bremsscheiben
    6,0 x 18 V-Rod für originale Bremsscheiben
    8,0 x 18 V-Rod für Design Bremsscheiben
    9,0 x 18 V-Rod für Design Bremsscheiben
    10,0 x 18 V-Rod für Design Bremsscheiben
    10,5 x 18 V-Rod für Design Bremsscheiben
    11,5 x 18 V-Rod für Design Bremsscheiben
    13,5 x 18 V-Rod für Design Bremsscheiben
    17 Zoll
    12,5 x 17 V-Rod für Design Bremsscheiben
