Wheel design Seven Sins

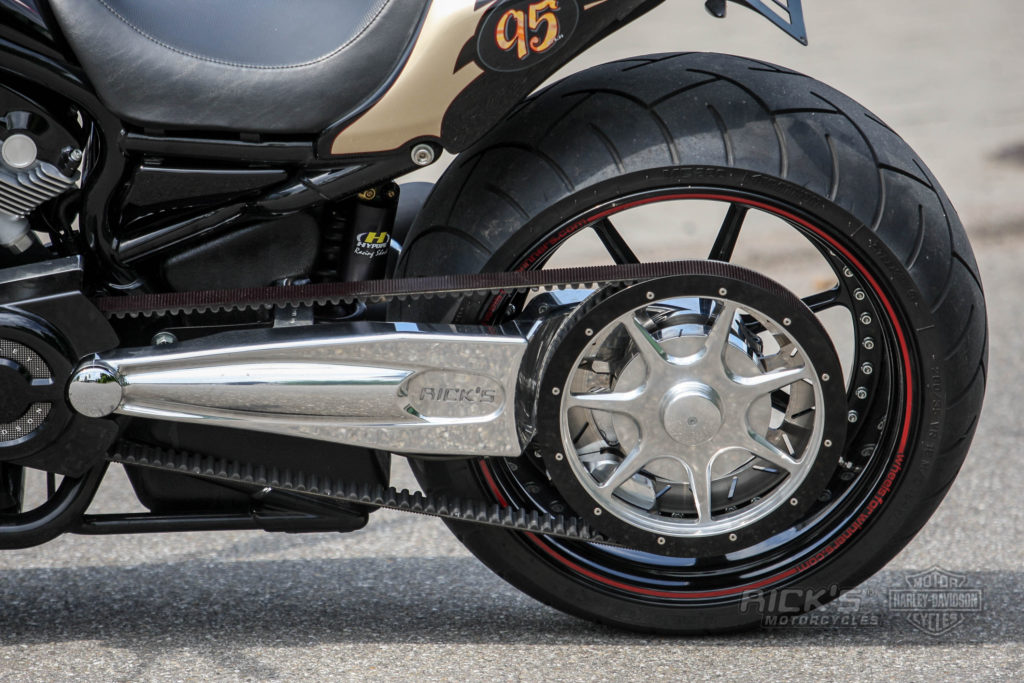

Rick’s 3-piece “Seven Sins” wheels are the modern interpretation of the now classic 7-spoke rim in style of the third millennium.
Since 1977 the first 7-spoke Morris cast rims on the XLCH Cafe Racer opened a new chapter in motorcycle history, the 7-spoke rims stand for sportiness, but also custom look and individuality. Seven elegant aluminium spokes grow almost naturally out of the round rim and unite with the stable wheel hub, which can be adjusted to all current hub widths thanks to Rick’s well known modular build system.
“Seven Sins” unite a chapter of custom history with the future of customizing.
Can spokes be sin?
Three-piece assembled CNC-machined wheels in custom design
Form and function are united in Rick’s wheels: by far exceeding their function as pure “wheel holders”, Rick’s design wheels determine the look of the motorcycle and also improve ride performance.
For building custom bikes, making wheels in several parts is revolutionary: a filigree look, robust in use, they offer an affordable option for several tire widths. The well known aluminium forged wheels from Rick’s are state-of-the-art, made in motorcycle norms and of course come with TUEV certificate.
The basis for all components is forged aluminium plate material, which is machined on CNC-machines into the correct custom design. The rounds for the rings are cold-formed under high pressure, which is called forging. The material density which is thus created has several advantages: no interruption of material grain direction, no pores or vacuum pockets as with other procedures, e.g. casting, are created, and a very good surface quality when polishing. Because of the high tensile strength of the material, with Rick’s wheels from 15” to 21” also unusual and filigree designs up to a width of 12.5” are possible. All rims can be supplied raw, polished or powder-coated.
Numerous combinations are possible: a coloured, powder-coated inner piece with polished rings, painted rims with polished inner part – there are no limits to your imagination…
|16 Zoll ||3,5 / 4,0 / 4,5 / 5,5|
|17 Zoll ||3,5 / 4,0 / 4,5 / 5,5|
|6,0 / 6,5 / 7,5 / 9,0|
|10,5 / 11,5 |
|12,5 x 17|
|18 Zoll||3,5 / 4,5 / 5,0 / 5,5|
|6,0 / 6,5 / 7,5 / 8,0 / 9,0|
|10,0 / 10,5 / 11,5 |
|13,5 / 14,5|
|19 Zoll||2,5 / 3,0|
|21 Zoll||2,5 / 3,5|
|19 Zoll||3,0 x 19 V-Rod für Design Bremsscheiben|
|3,0 x 19 V-Rod für originale Bremsscheiben|
|18 Zoll||3,5 x 18 V-Rod für Design Bremsscheiben|
|3,5 x 18 V-Rod für originale Bremsscheiben|
|6,0 x 18 V-Rod für Design Bremsscheiben|
|6,0 x 18 V-Rod für originale Bremsscheiben|
|8,0 x 18 V-Rod für Design Bremsscheiben|
|9,0 x 18 V-Rod für Design Bremsscheiben|
|10,0 x 18 V-Rod für Design Bremsscheiben|
|10,5 x 18 V-Rod für Design Bremsscheiben|
|11,5 x 18 V-Rod für Design Bremsscheiben|
|13,5 x 18 V-Rod für Design Bremsscheiben|
|17 Zoll||12,5 x 17 V-Rod für Design Bremsscheiben|
